20mm Linear Guideway Rail System - 1701.8mm Length - 67" Long

20mm Linear Guideway Rail System - 1701.8mm Length
  ✔️ Precision Motion - 67" Long - Metric Profile

This 20mm linear guideway system features a high-precision rail that runs 1701.8mm (67 inches) in length, designed for smooth and accurate linear motion in CNC machines, 3D printers, and automation systems. Built to handle high loads and repetitive movement with minimal friction.

✅ Rail height (H): 20mm
✅ Overall rail length (L): 1701.8mm (67")
✅ Rail width (W): 22.5mm
✅ Mounting height (E): 27mm
✅ Mounting hole spacing (F): 45mm
✅ Hole thread: M6
✅ Bolt size: S1: 5.5mm, S2: M6

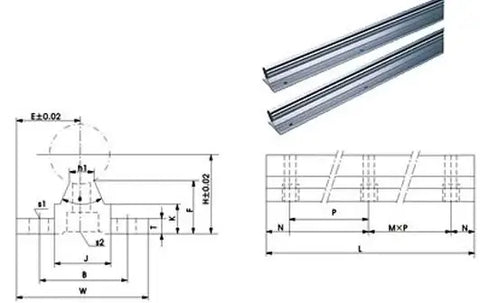

✅ Mounting dimensions:
    – T: 17.7mm
    – K: 5mm
    – J: 10mm
    – h1: 19mm
    – B: 8mm
    – N: 30mm
    – M\*P: 25mm
✅ Hole spacing pattern: 1 hole every 100mm
✅ Quantity: 1 rail (carriage block not included)

💡 Why choose a 20mm linear rail system for motion control?
A 20mm rail strikes the perfect balance between compact form and load-bearing capacity. It's ideal for high-precision motion in robotics, machine tools, and automated systems where accuracy, strength, and smoothness matter.

Upgrade your linear motion with precision—add this 1701.8mm guideway to your build and glide with confidence!
