20mm Bearing HCFL204 2 Bolt Flanged Cast Housing Mounted Bearing with Eccentric Collar
$37.99
SKU: HCFL204
UPC: 00193019200094
UPC: 00193019200094
Item: HCFL204
Type: Mounted Bearing with Eccentric Collar
Bolt Size: M10
Basic Load (Cr): 12,800 N
Basic Load (Cor): 6,650 N
Type: Mounted Bearing with Eccentric Collar
Bolt Size: M10
Basic Load (Cr): 12,800 N
Basic Load (Cor): 6,650 N
| 20mm Flanged Mounted Bearing With Eccentric Collar HCFL204 One Bearing |
|
20mm Mounted Bearing with eccentric collar HCFL204. The inner diameter is 20mm.
|

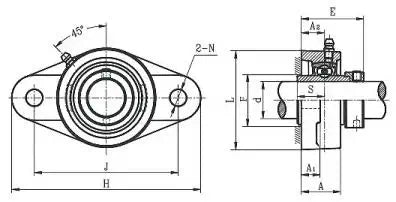

| Dimensions | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | H | J | N | A | A1 | A2 | E | L | S | ||
| 20mm | 113 | 90 | 12 | 25.5 | 11 | 17.1 | 43.7 | 60 | 15 | ||
