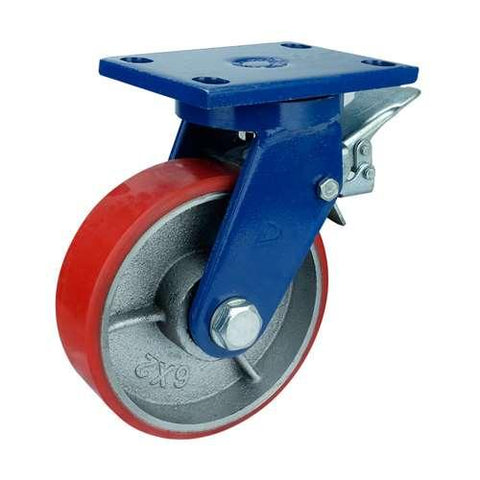

10" Inch Extra Heavy Duty Caster Wheel 3307 pounds Swivel and Upper Brake Cast iron polyurethane Top Plate

$310.99
SKU: VXB009C250BCPUB
Wheel Diameter= 10" Inch" inch=250mm
Load Capacity=3307 lb
Mounting Type= Top Plate
Mounting= Swivel and Upper Brake
Tire= Cast iron polyurethane
10" Inch Caster Wheel 3307 pounds Swivel and Upper Brake Cast iron polyurethane Top Plate
  • Item Name= VXB009C250BCPUB
  • Extra Heavy Duty
  • Wheel Diameter= 250mm
  • Wheel Width= 75mm
  • Wheel Diameter= 10" Inch = 250mm
  • Overall Height= 320mm
  • Overall Height Inch= 12.598"
  • Mounting Type= Top Plate
  • Top Plate Size= 200mm x 153mm Top Plate: 14mm+housing: 10mm
  • Hole distance= 160mm x 90mm
  • Wheel Core= Cast iron polyurethane
  • Tire= Cast iron polyurethane
  • Bearing type= Precision double ball bearing
  • Load Capacity= 3307 lb
  • Mounting= Swivel and Upper Brake
  • Temperature Range= -40 to 180 F

  • VXB009C250BCPUB is a device comprising a wheel that's connected to the base of a huge object like a trailers, your home furniture, even your truck to transfer the item more quickly and readily. them.You need {Item Name} to have your office desk, equipment or even a machine to easily roll them around. Diameter size of the caster wheel has a metric standard 250mm which is equal to 9.843" inch with imperial units. The wheel has a width of 75mm=2.953" inch. The Caster with the wheel from end to end is 320mm = 12.598" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 200mm x 153mm Top Plate: 14mm+housing: 10mm and holes distance of 160mm x 90mm. The weehl core material is Cast iron polyurethane and has a Cast iron polyurethane tire with a low friction Precision double ball bearing. Bearing in mind that every caster wheel has the load capacity of 3307 lb with a Swivel and Upper Brake type. Environment temperature range is -40 to 180 F. Buy the VXB009C250BCPUB now, just add the quantity to basket and click on Checkout.
