SB203 Rodamiento de Bolas de 17mm Diámetro Montado por Inserción

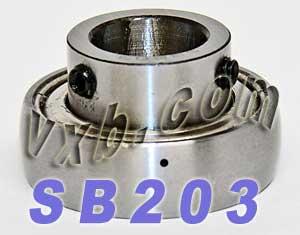

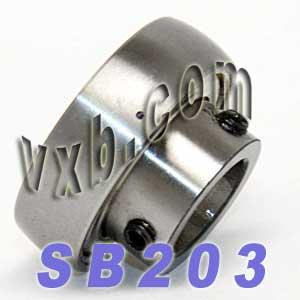

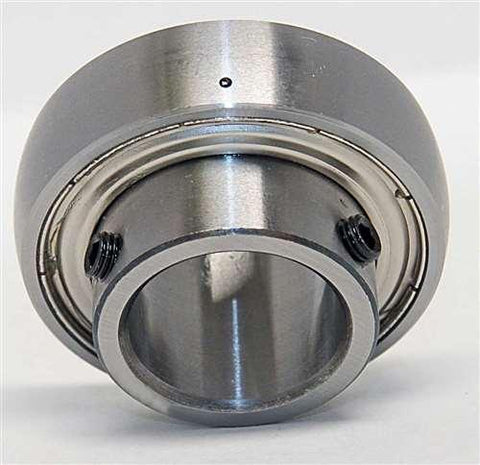

SB203 Ball Bearing Insert
✔️ For 17mm Shaft with Set Screws
This SB203 insert bearing is designed to fit snugly in mounted housings, offering smooth rotation and dependable performance for industrial machinery and agricultural equipment. With a 17mm inner diameter and two set screws, it's easy to secure in place and ready to handle radial and axial loads.
✅ Inner Diameter: 17mm (with set screws)
✅ Outer Diameter: 40mm
✅ Overall Width: 22mm
✅ Insert Style: Cylindrical bore with set screws
✅ Load Rating Cr (Dynamic): 9.55 kN
✅ Load Rating Cor (Static): 4.80 kN
✅ Pack Size: 1 bearing
Tabla de Dimensions :
| Espec | Valor |
|---|---|
| d (Bore) | 17mm |
| D OD) | 40mm |
| Bi (Total Width) | 22mm |
| Be (Outer Ring Width) | 12mm |
| r (Fillet Radius) | 1mm |
| n (Distance to Set Screw) | 6mm |
| m (Inner Ring Width) | 16mm |
| G (Set Screw Size) | 45mm |
💡 What makes a ball bearing insert ideal for mounted housing applications?
Ball bearing inserts like the SB203 are built to slide into mounted housings, offering an easy way to replace worn-out bearings without switching the entire unit. Their cylindrical shape and secure locking with set screws make them a go-to for machines that experience vibration or load fluctuations.
This one’s built to last - grab it today and keep your equipment running like a champ!
